Tailored Membrane Filter Press Supports Production at Nyrstar Hobart.
At its site in Hobart, international zinc producer Nyrstar has implemented a technical upgrade as part of a broader capacity expansion. A new membrane filter press was installed to optimize solid-liquid separation within the Roast-Leach-Electrowinning (RLE) process. The objective: improved process consistency, enhanced metal recovery, and a safer working environment.
Filtration as a Critical Step in the RLE Process
The RLE process, a widely used method in zinc production, involves the roasting of zinc concentrate and subsequent leaching of the calcine in sulfuric acid. This yields a zinc-containing slurry that must be reliably separated from solid residues. Inadequate filtration at this stage can lead to metal losses, process disruptions, and increased downstream workload.

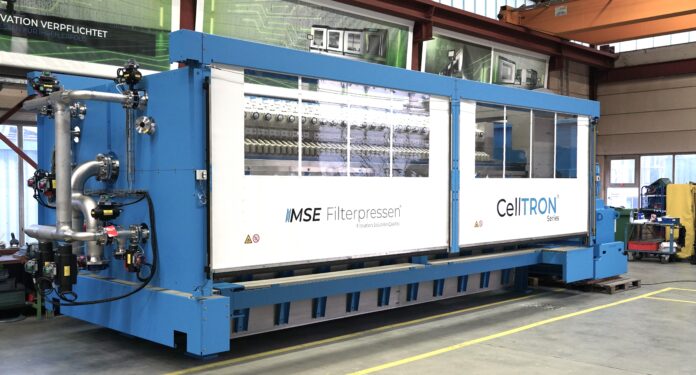

To address this, Nyrstar opted for a solution that could meet both the quantitative and qualitative requirements of the upgraded line. A membrane filter press from German manufacturer MSE Filterpressen GmbH was selected to fulfill these specifications. The system is designed to ensure high dewatering performance and stable operation under the specific chemical and process conditions present at the Hobart facility.
Technical Configuration and Adaptation to Site Conditions
The installed filter press utilizes membrane filter plates that are mechanically compressed during the filtration cycle. In a secondary step, the membranes are pressurized with water, enabling further reduction of residual moisture content in the filter cake. This enhances not only yield but also downstream handling and disposal efficiency.
To withstand the aggressive process environment, MSE configured the system with PVDF membranes and a duplex stainless-steel lining. The filter press was designed in modular sections to allow transport to Tasmania and to enable space-efficient assembly on site. The configuration also allows for later adjustments, if needed, as operational demands evolve.
Automation and Process Integration
All filtration steps – including slurry feeding, pressure control, plate opening, cake discharge, and filter cloth cleaning – are fully automated. The system’s integrated safety features and sensor-based monitoring help ensure operator protection, especially under the high operating pressures typical in zinc processing. Consistent cycle times contribute to a stable and predictable production rhythm.
Occupational Safety and Environmental Impact
The enclosed design, combined with automated cake removal, minimizes operator exposure to acidic residues. The result is improved handling safety and compliance with strict site-level occupational safety protocols. The reduced moisture content of the final product supports more efficient transport and disposal while decreasing overall environmental impact.
Project Logistics and Implementation
The approximately 40-tonne unit was shipped in modular components from Germany to Tasmania. The intercontinental transport and on-site installation were closely coordinated between MSE and Nyrstar to ensure alignment with production schedules. Commissioning and technical integration were executed by the manufacturer’s engineering team, with particular consideration given to local spatial constraints.
Outlook
The deployment of a membrane filter press specifically configured for zinc electrolysis underlines the relevance of customized solid-liquid separation solutions in modern metal production. With experience in similar process environments, MSE Filterpressen GmbH contributed targeted engineering expertise to support the plant’s operational goals. The system not only strengthens production stability at Nyrstar Hobart but also reflects broader industry trends toward automation, safety, and resource efficiency in hydrometallurgical applications.
